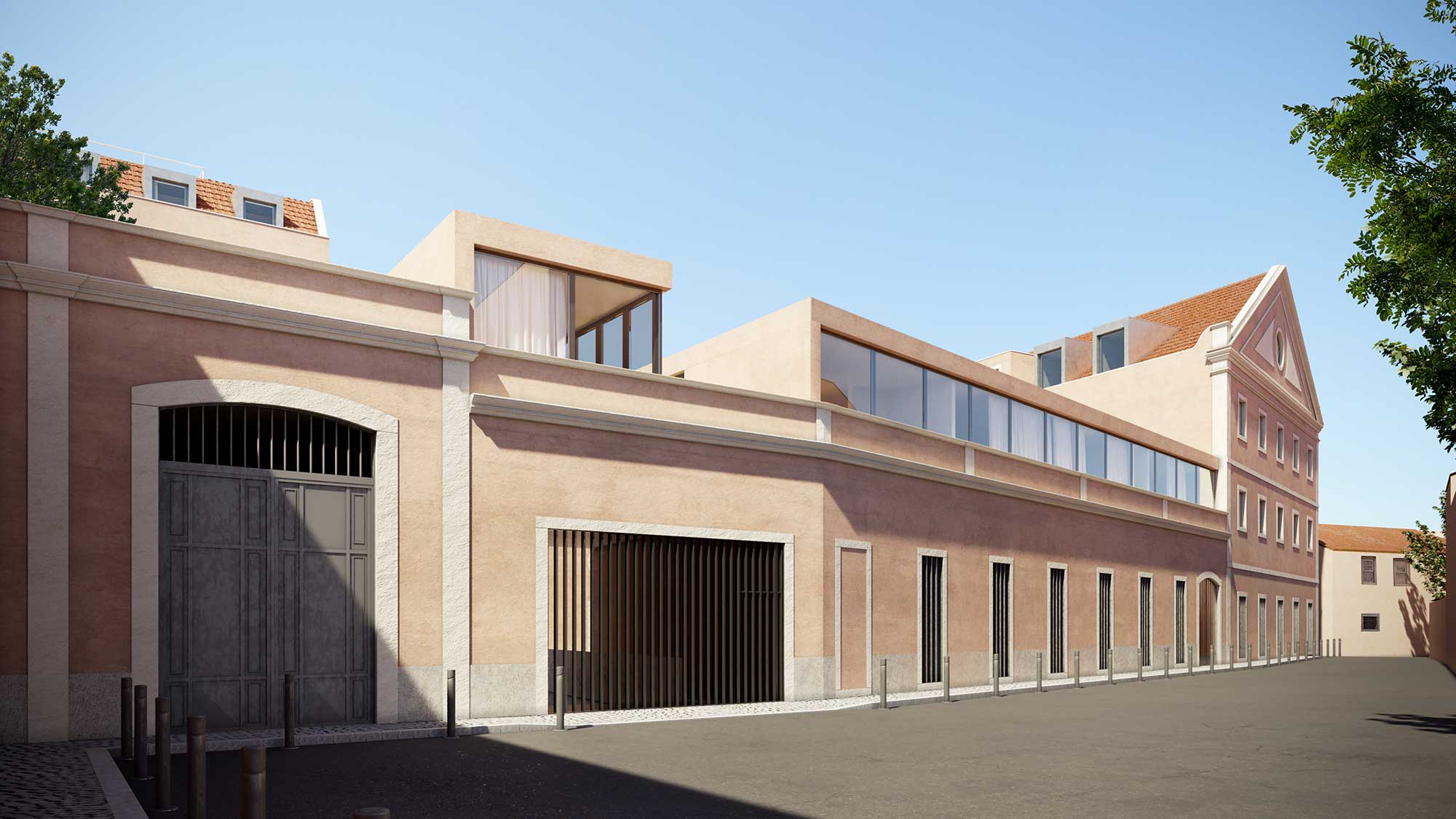

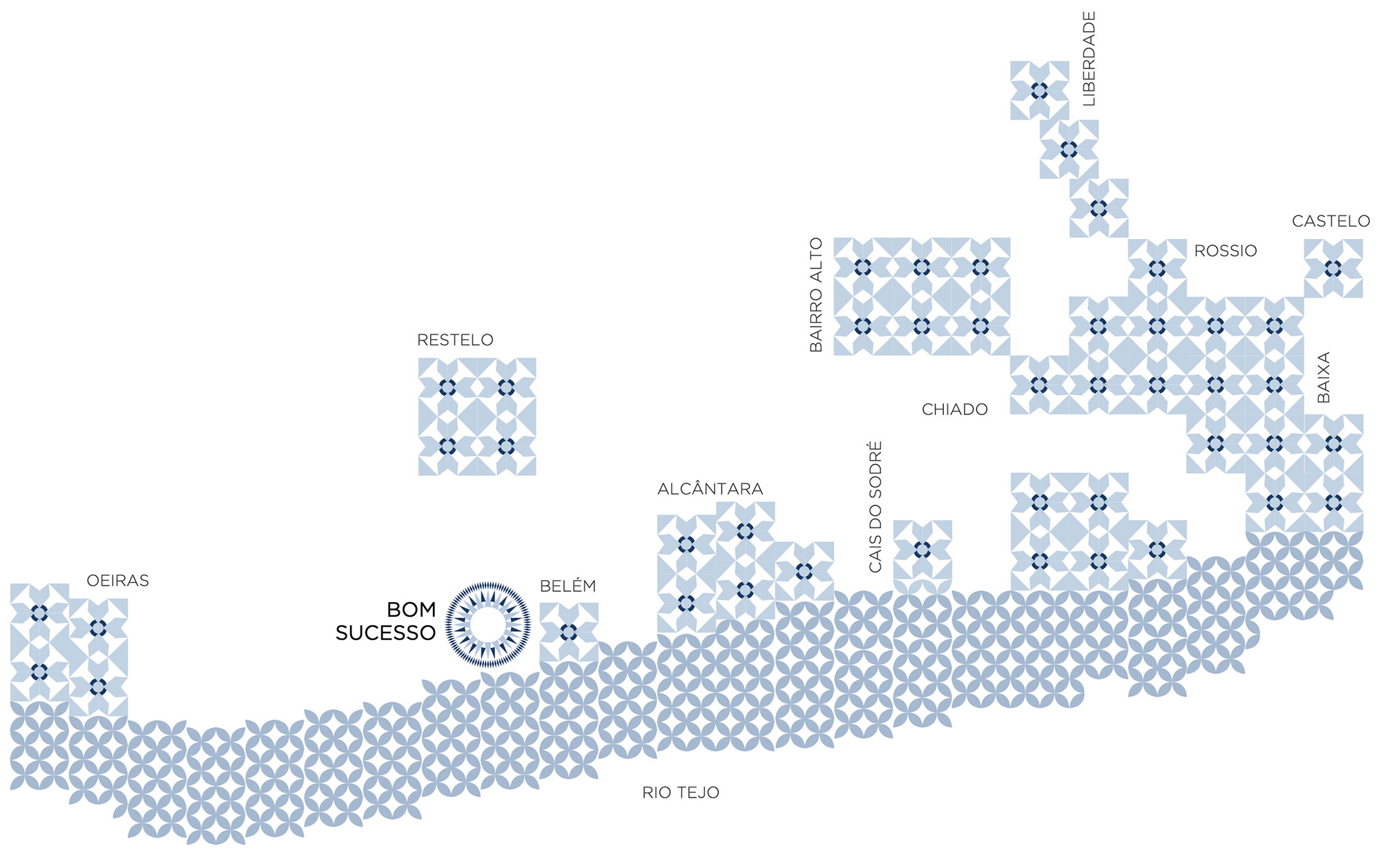

Located in Belém, very close to the Tagus, Bom Sucesso is a set of four distinct housing buildings. Flanked to the south by Rua Bom Sucesso Beach, this set builds the name not only of Rua, but of the Convent of Our Lady of Bom Sucesso (founded in 1645), which nicknamed Praia and Rua homonyms, having been a beach destination popular at the end of the century. XIX.



2021

Lisboa

4 buildings for collective and single-family housing

Saraiva + Associados

Bom Sucesso 00
"

In addition to the proximity to the river, these four buildings are contiguous to the Centro Cultural de Belém, inseparable from the cultural nature that this center impresses, contributing to the differentiating potential of this venture.

Two types of housing are proposed: collective and single-family housing. Each one with a varied offer of space and environments, with two buildings dedicated to single-family housing and two other buildings dedicated to collective housing.

At the extremes of the proposed conceptual spectrum are the single-family with traditional industrial-type environments vs. contemporary minimalist.


Bom Sucesso 06
bomsucesso esquico 01
bomsucesso esquico 01

Memory preservation

The "Bom Sucesso" project seeks to keep alive the memory of the place, preserving the industrial character of the old buildings - namely through architectural elements such as two-story roofs and the extensive and symmetrical fenestration respecting and valuing its proximity to the secular convent of Bom Success and making this bit of city a new and pleasant centrality.


Typologies

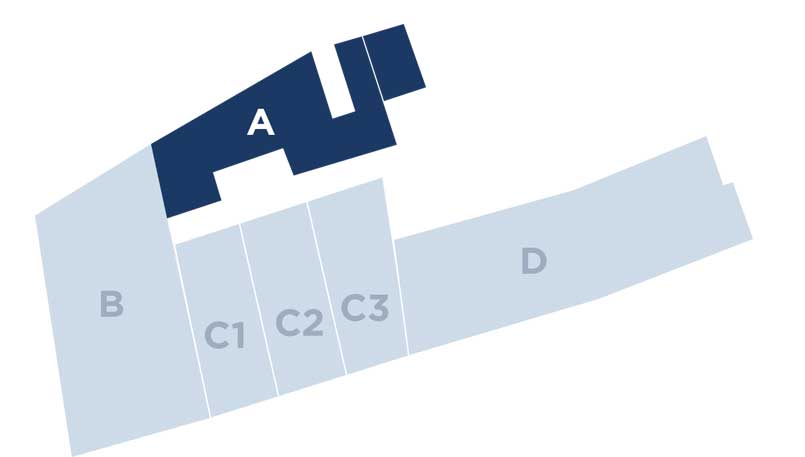

bomsucesso planta A
ARTS Building

BLOCK A

The refined language of these spaces swirls with the amplitude of the social areas, which include a room with double footstool in the duplex, and with the presence of patios and private terraces that soften, illuminating, the interiors.



A1 + A2T3 duplex301.75m2

A3T180.09m2

A4T2113.72m2

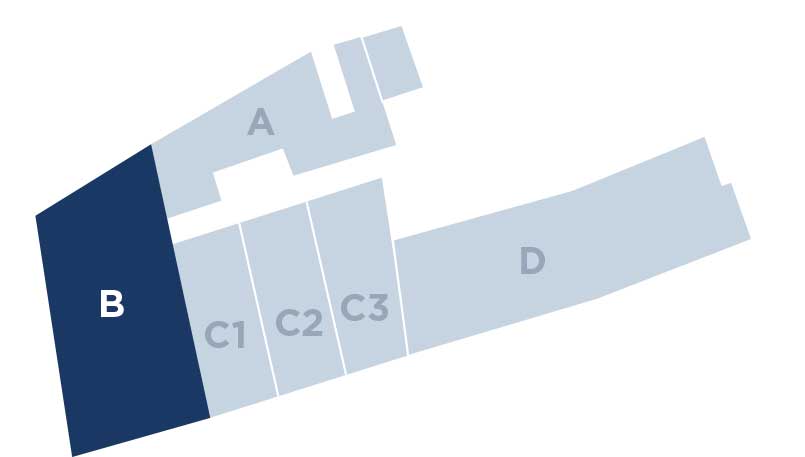

bomsucesso planta B
ARTS BUILDING

BLOCK B

The Arts Building, with a regular facade metric, prints in the interior spaces the comfort of the urban dwelling inserted in the Lisbon landscape.



B1T190.56m2

B2T2156.78m2

B3T2127.12m2

B4T3163.79m2

B5T3209.46m2

B6-1T188.09m2

B6-2T188.09m2

B7-1T182.66m2

B7-2T182.66m2

B8T3151.85m2

B9T4211.52m2

B10T3160.98m2

B11T4281.39m2

B12T3176.69m2

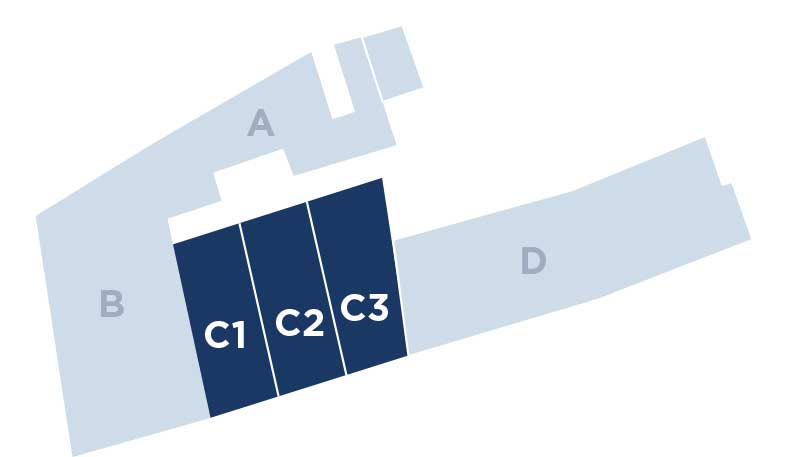

bomsucesso planta C
ARTS BUILDING

BLOCK C

In these three naves are distributed the loft style single-family apartments, preserving the geometry of the façades and roof, take advantage of the original industrial language with a view towards the river.



C1T4 duplex399.05m2

C2-1T3 duplex200.48m2

C2-2T3 duplex200.30m2

C3T5 duplex363.94m2

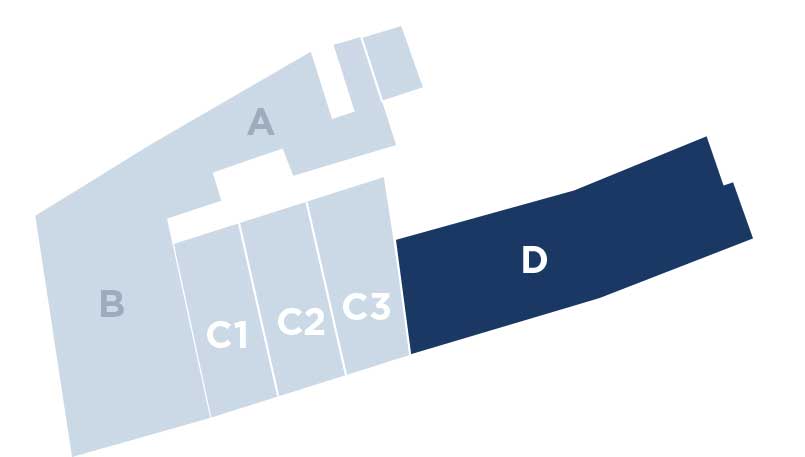

bomsucesso planta D
MILLING BUILDING

BLOCK D

This extension of public space introduces, in the ground floor apartments, private gardens that extend to the back of the Convent of Our Lady of Bom Sucesso.



D1T2117.14m2

D2T3237.99m2

D3T2115.16m2

D4T2107.69m2

D5T170.53m2

D6T4213.66m2

D7T174.81m2

D8T174.25m2

D9T3178.78m2

D10T4239.56m2

D11T4256.93m2

arquitecture

SARAIVA + ASSOCIADOS

The history of the studio is rooted in that of its founder, Miguel Saraiva, CEO and conceptual leader of each project. His passion for architectural design was combined with the fearless vision that would allow the elevation of a small newly formed atelier to a corporate structure capable of positioning itself across borders and constituting itself as an author's atelier of international scale.

www.saraivaassociados.pt
bomsucesso esquico 01
Finishes & Technologies



BLOCK A

Private patios pavement in carpeted screed finished with colorless water repellent;

Ground lawn with irrigation system programmable on the private terrace of the duplex (floor 1);

Pavement coated with gravel gray light gray granite and paths with white concrete slabs with open joint in the access to the dwelling (interior of the street). Punctuated access with shrubs provided in the landscaping project;

Window frames - Glazed sections of courtyards and earthen spans in steel frame with thermal cut and dark gray finish - Forge - matt color; double glazing with gray tint. Frames of upper spans in thermo-gray aluminum in dark gray color, with glass equal to the previous ones;

Exterior cover metallic door in front of the glazing at the ground level consisting of flat steel rods of slender rectangular section with matte finish in dark gray color equal to the remaining window frames;

Guardrail of the balconies of the floor 1 constituted by plumos and passamanos in flat bar of steel of slender rectangular section with matte finish in the dark gray color equal to the remaining window frames;

Sills and sills in existing lioz stone to recover, or new elements identical to existing ones.

Interior wooden doors, including trimmings and fittings with white lacquered finish and matt finish;

Covers made up of 4 sheets with articulated opening;

The upper portals have the leaves subdivided to half height to allow the opening of the upper plane, maintaining privacy.

Interior carpentry doors with leaf (s) on the face, pivoting or white lacquered running, matte finish. Vains up to the height of the lower ceilings (eg corridor ceiling and sanitary facilities).

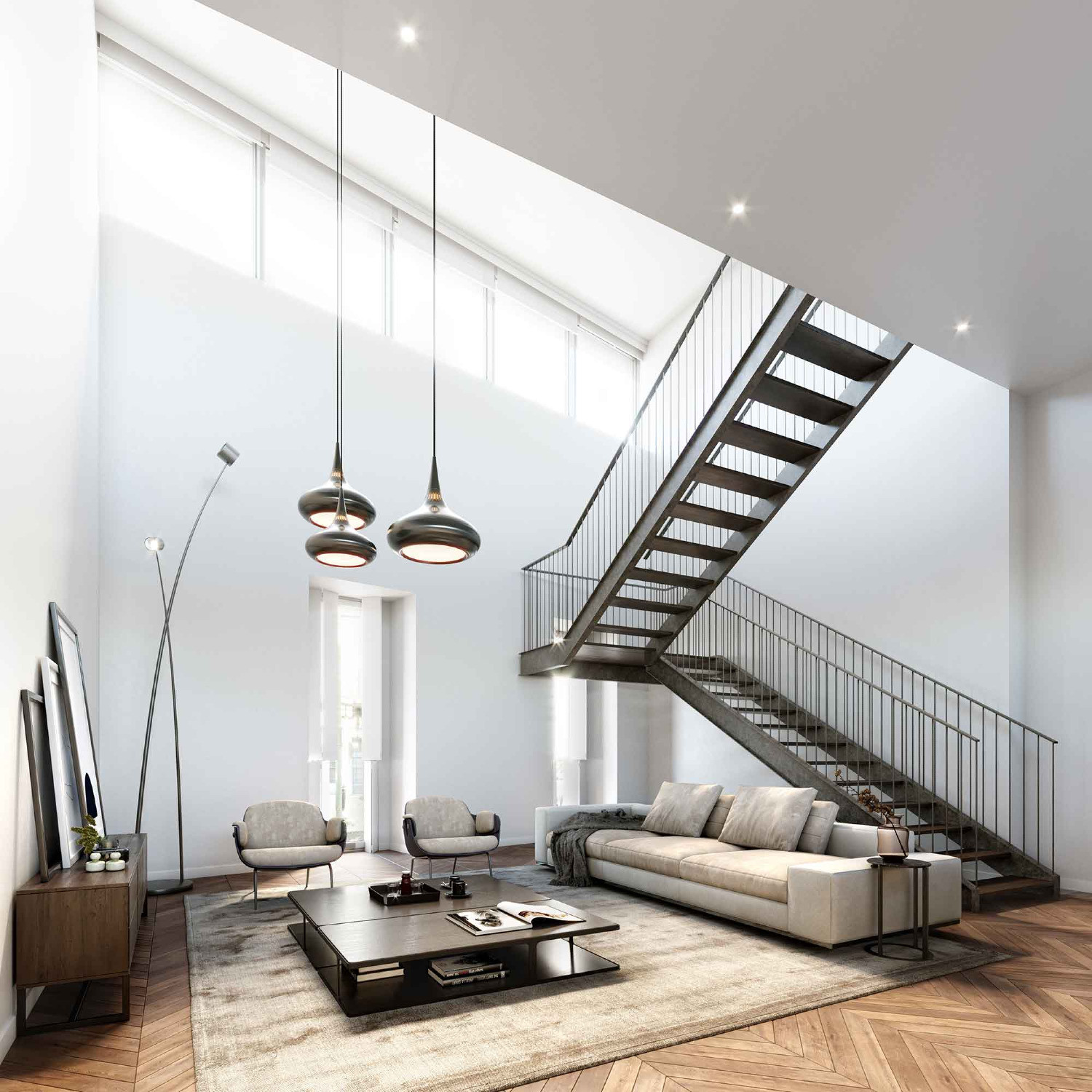

Loose staircase, with steps without a mirror in metal frame;

Wood-covered steps equal to that applied to interior floors - only covered on the stepped blanket, without mirror - and metallic elements with black lacquered matt finish;

Metallic guard with 8mm round flat rods and flat rods with rectangular section 5x40mm;

Welded rods to the handrails and to the metallic structure of the steps. Metallic set and painted in black, matt finish.

Circulation floor, rooms, rooms and kitchenette in wood with a slightly grayish hue ("Hackwood" type, Color Collection, Locke, Duoplank micro bevel;

Porcelain tile flooring in gray color (medium gray, close to 50%), with light gray shaft, similar in appearance to natural stone, matte texture and rectified edges;

In larger sanitary facilities, when the toilet and bidet exist in a space separated by glazing, the floor is coated with ultra-compact composite material identical to a natural white stone with a light gray, punctual, matte appearance.

Skirting Metal skirting with a 10cm high wall, lacquered in white;

Humid zones without skirting, that is, directly from the wall to the pavement.

Walls in traditional or acoustic brick masonry (depending on the acoustic requirements of space) with smooth matt finish in white paint;

Walls of the wet areas - kitchenettes and social sanitary facilities - with paint system and water-based acrylic enamel paint with anti-fungal protection and smooth matt finish in white;

Coating of some walls of sanitary facilities (for example, in the showers) in the same floor material and in continuity as in porcelain tile or ultra compact composite material.

Solid continuous false ceilings in normal or waterproof plasterboard in wet areas, with busbar and white paint finish;

Cornice in continuous u-shaped perimeter profile (shadow profile) with approximately 1,5cm of side with same finish of the ceiling;

Crown molding with LED illumination profile in the sanitary facilities, on the side wall of the shower or, in the sanitary facilities, next to the mirror on the washbasin;

Next to the façades on the ground floor the ceiling finishes in crown molding with possibility of inclusion of decorative curtain and continuous hidden LED profile. In the upper floor, in the large glazing in curtain facade system the cornice also includes electric blackout curtain built-in, with white screen.

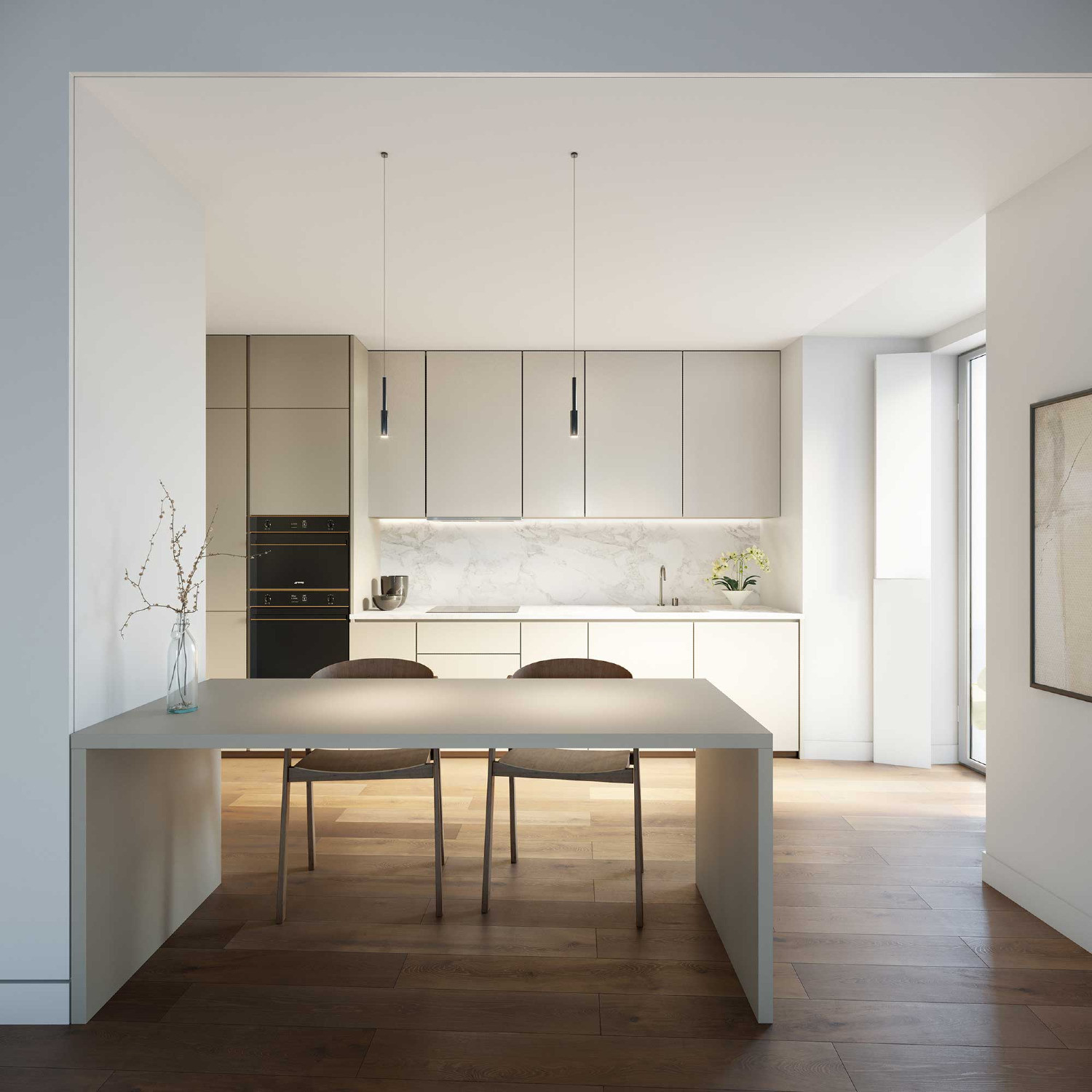

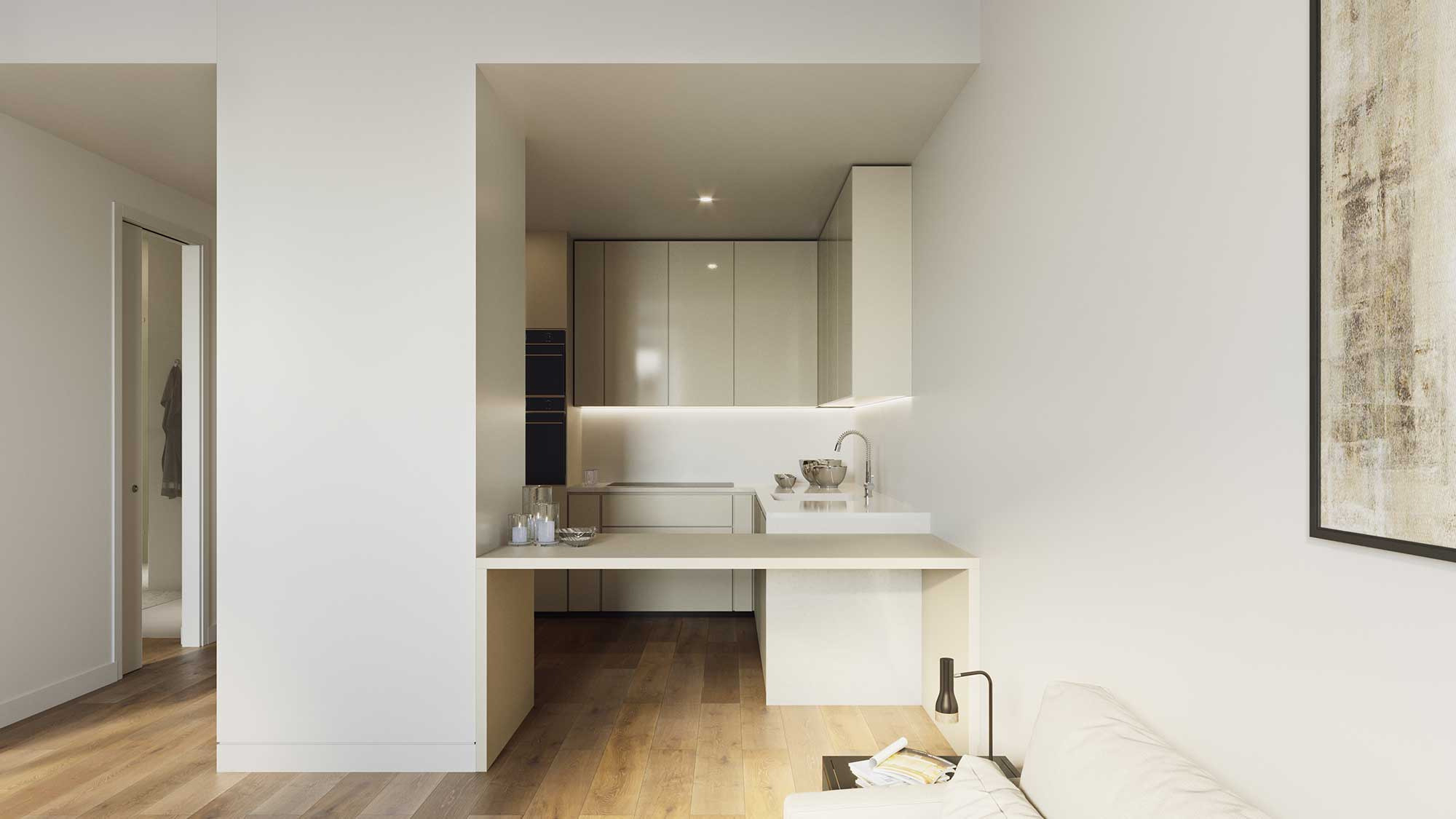

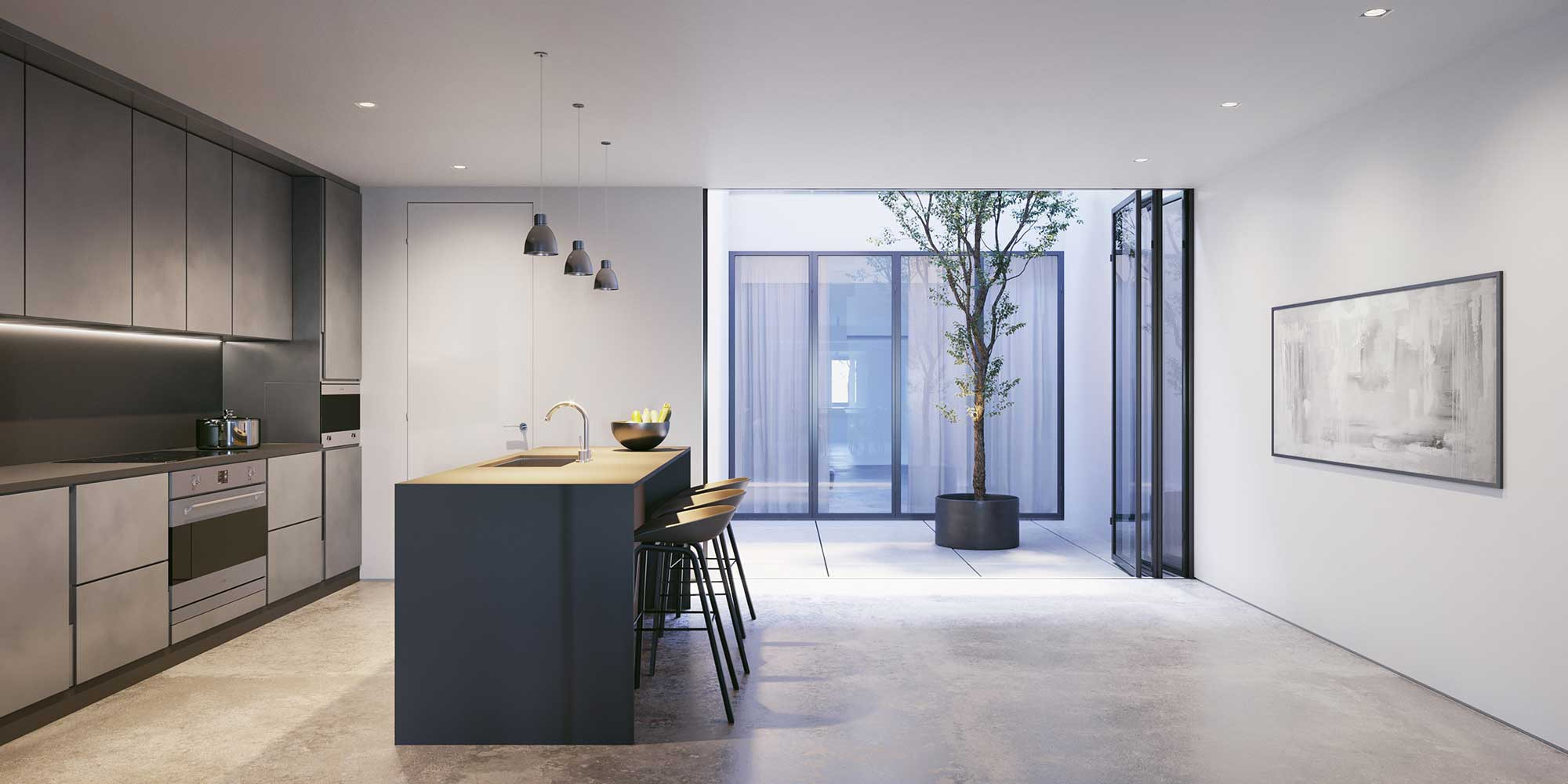

Open Kitchens

Lower and Upper Modules: Black Matt (Fénix);

Upper modules with wood veneer finish with vertical shaft;

Equipments: Gaggenau serie 200 Anthracite;

Table at 0.74cm height with same finish of the upper modules. Top in ultra-compact material identical to stone, smooth black with a matt finish;

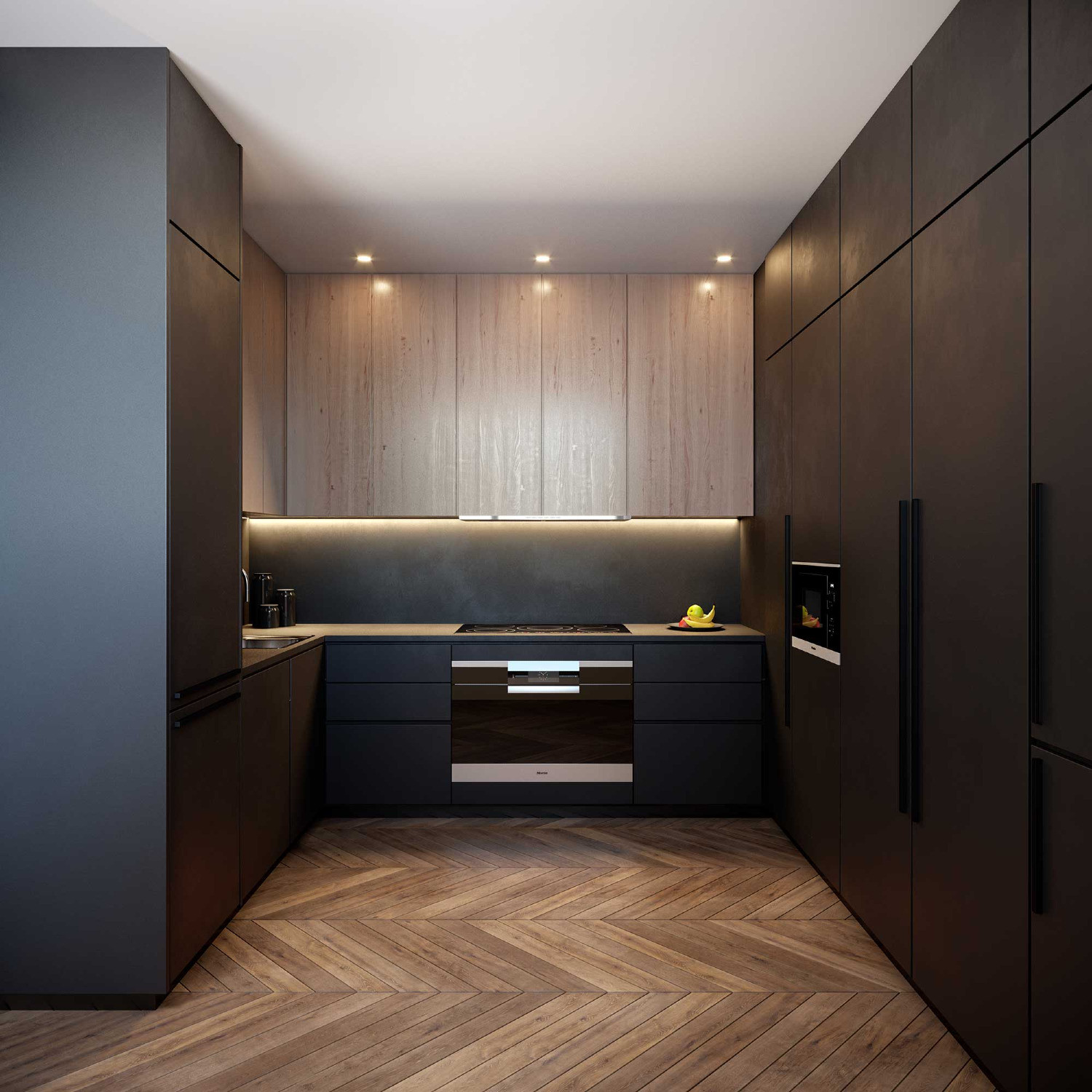

Closed Kitchen - duplex;

Bottom and Top Modules: Mate Black (Fénix);

Modules superior: Titan White Opaque;

Equipments: Gaggenau serie 200 Anthracite;

Surface in ultra-compact material identical to stone, smooth black finish.

Chrome finish taps;

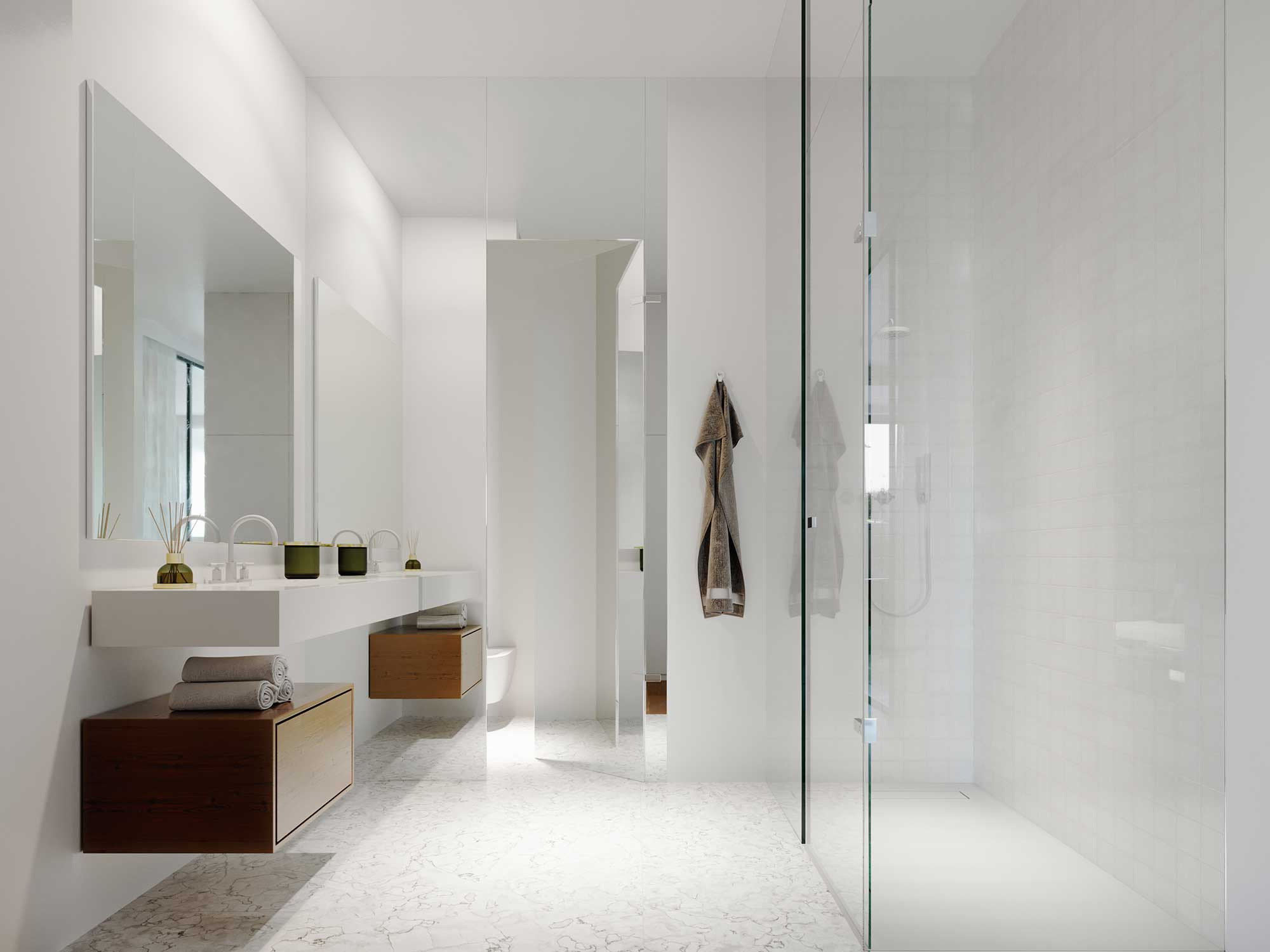

Sink bench in ultracompact material in white color, polished with light gray spot shaft (Eternal Statuario);

Suspended lower cabinet with two drawers, matt white finish;

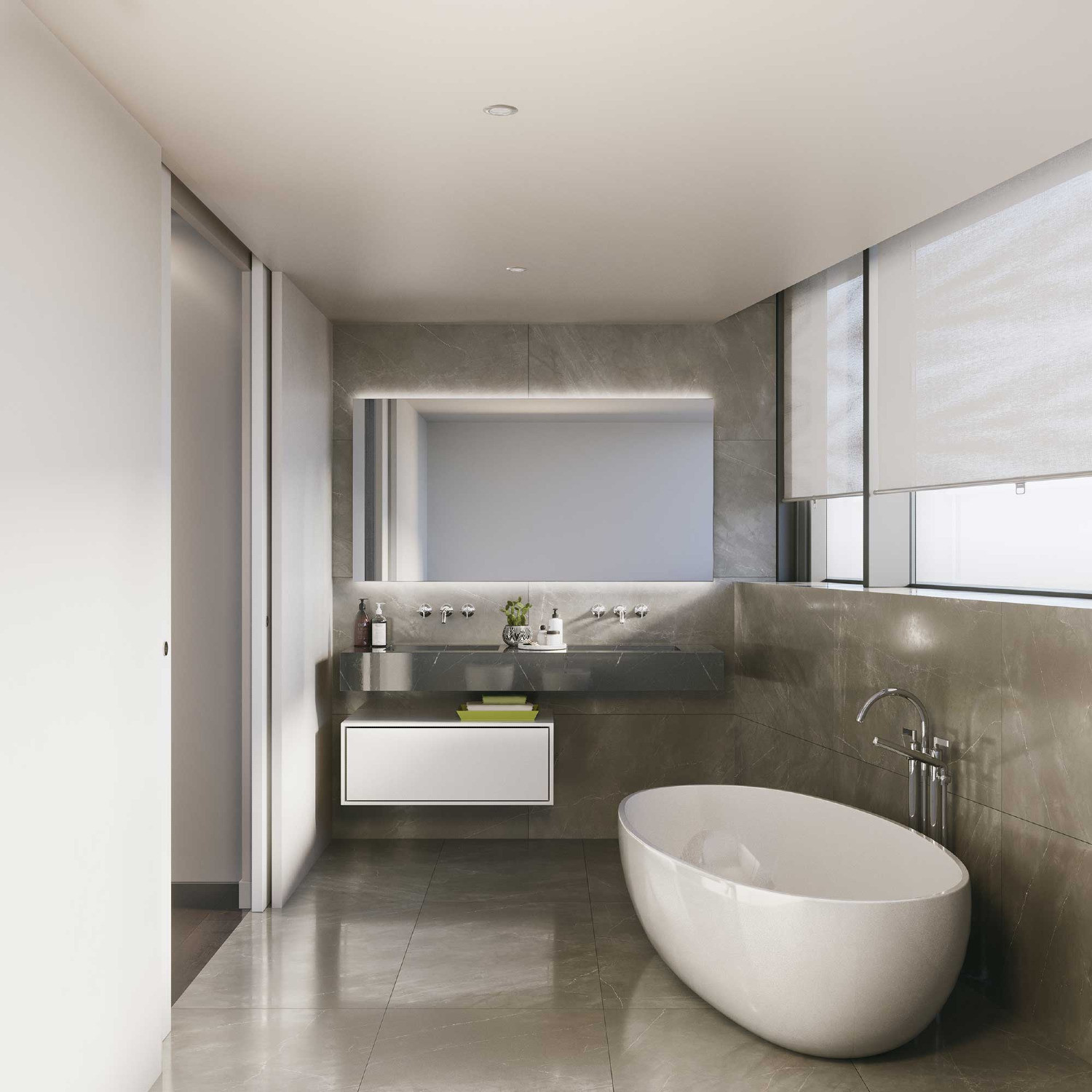

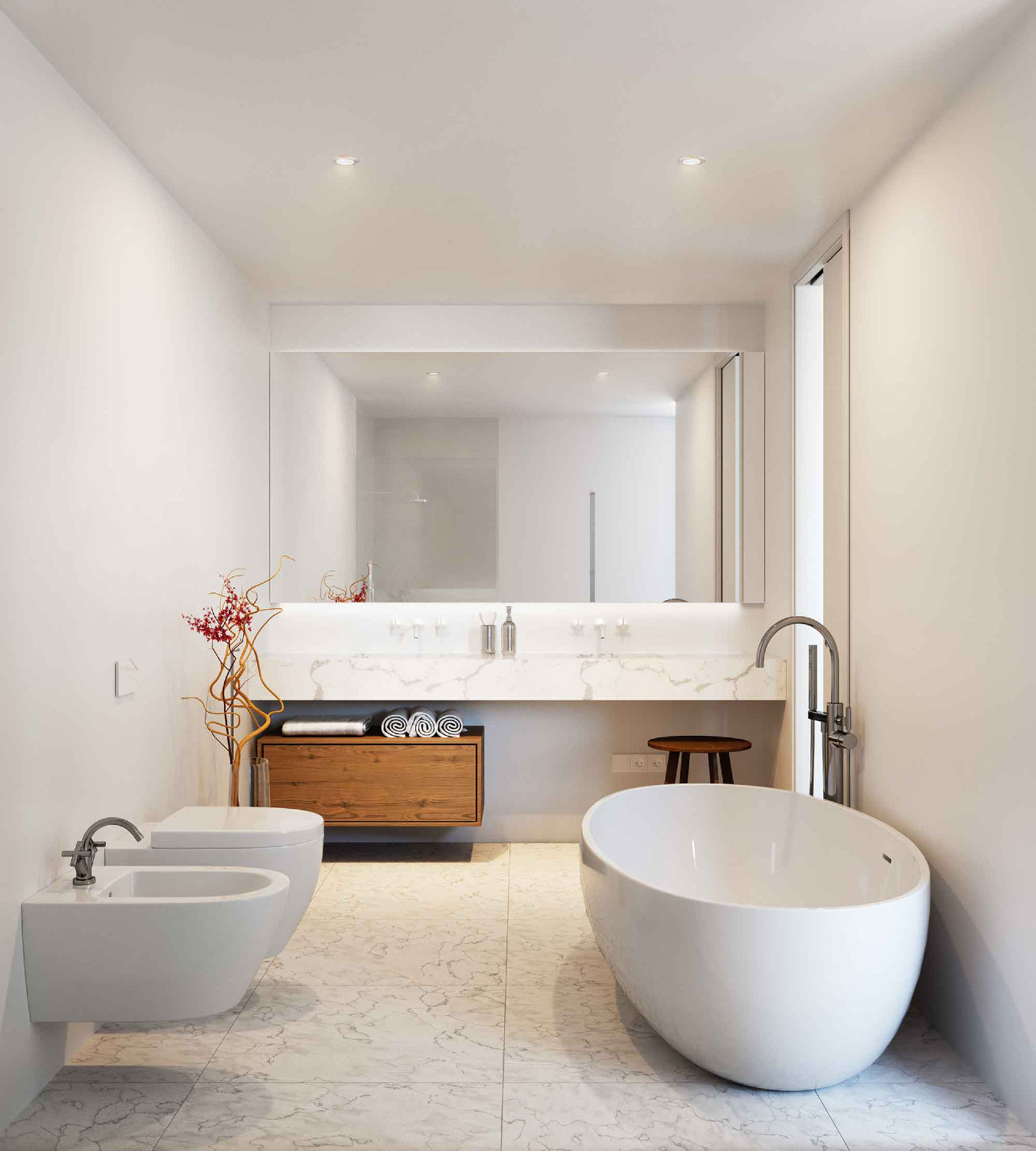

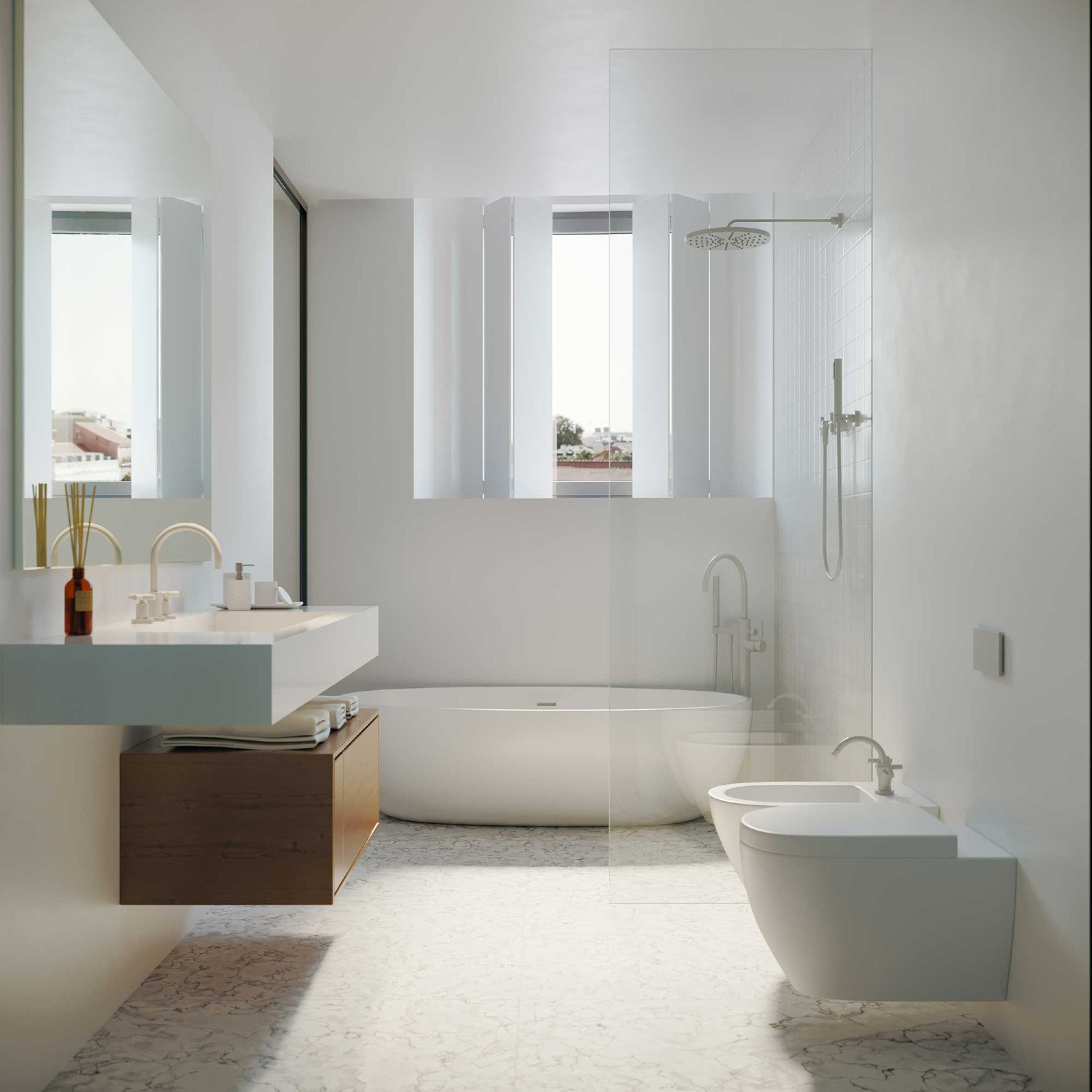

Sanitary ware (toilet and bidet) suspended in white glazed ceramic (Eternal Statuario ");

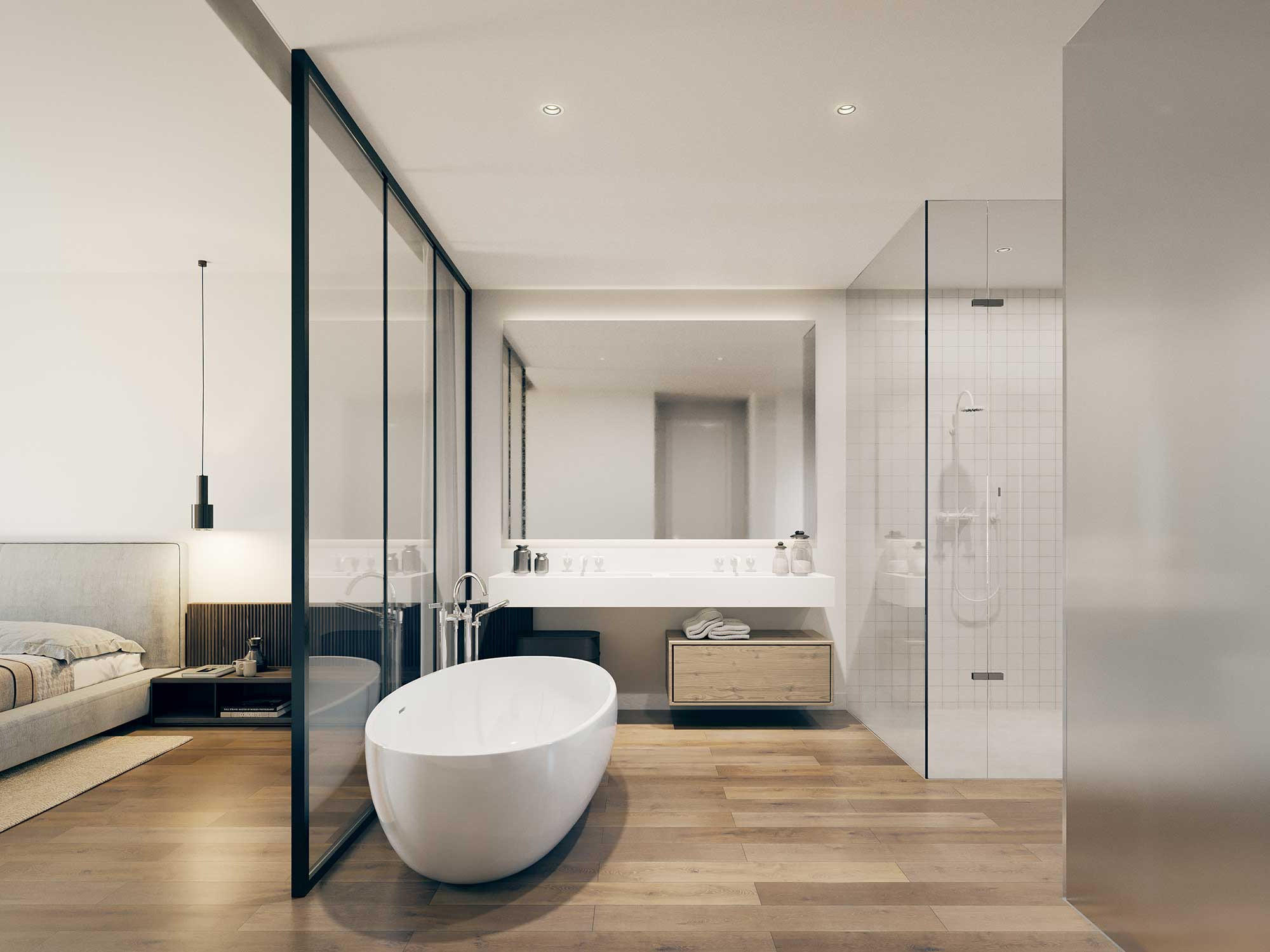

Loose baths (larger sanitary facilities and in some rooms) in matt white ceramics with narrow limits Dimensions: height 475 x length 1650 Width 900 mm;

Chrome-plated floor-standing bath-tub faucet;

Metal towel rail with rectangular profile placed vertically and wall-mounted 50mm with chrome finish.

Colorless mirrors on washbasins with anti-fogging system.

White Electrical System with "JUNG" minimalist "LS Zero" Series, model "LS990". In kitchens, bench tops are the same model but in black.



BLOCK B/D

Exterior metal doorway in the glazed earthenings facing the South and West streets consisting of flat bar stems in a slender rectangular section with matt finish in dark gray color similar to the other window frames;

Upper glazed vents with thermal cut and acoustic control in aluminum frame thermo-lacquered to dark gray color. Double glazing with gray shade;

Sills in existing stone to recover, or new elements identical to existing ones;

Cantarias in the existing facades to recover with water jet cleaning;

In the new façades the stonework is as identical as possible to pre-existence;

On the Tardoz façade (new façade, with a distinct language in relation to the interior of the landscaped patio) the stone stonework makes a frame around the span, with a thickness of 3cm and slightly protruding. On this façade, on the ground level and adjacent to the private gardens, it is based on the same stone until approximately 0.90m in height;

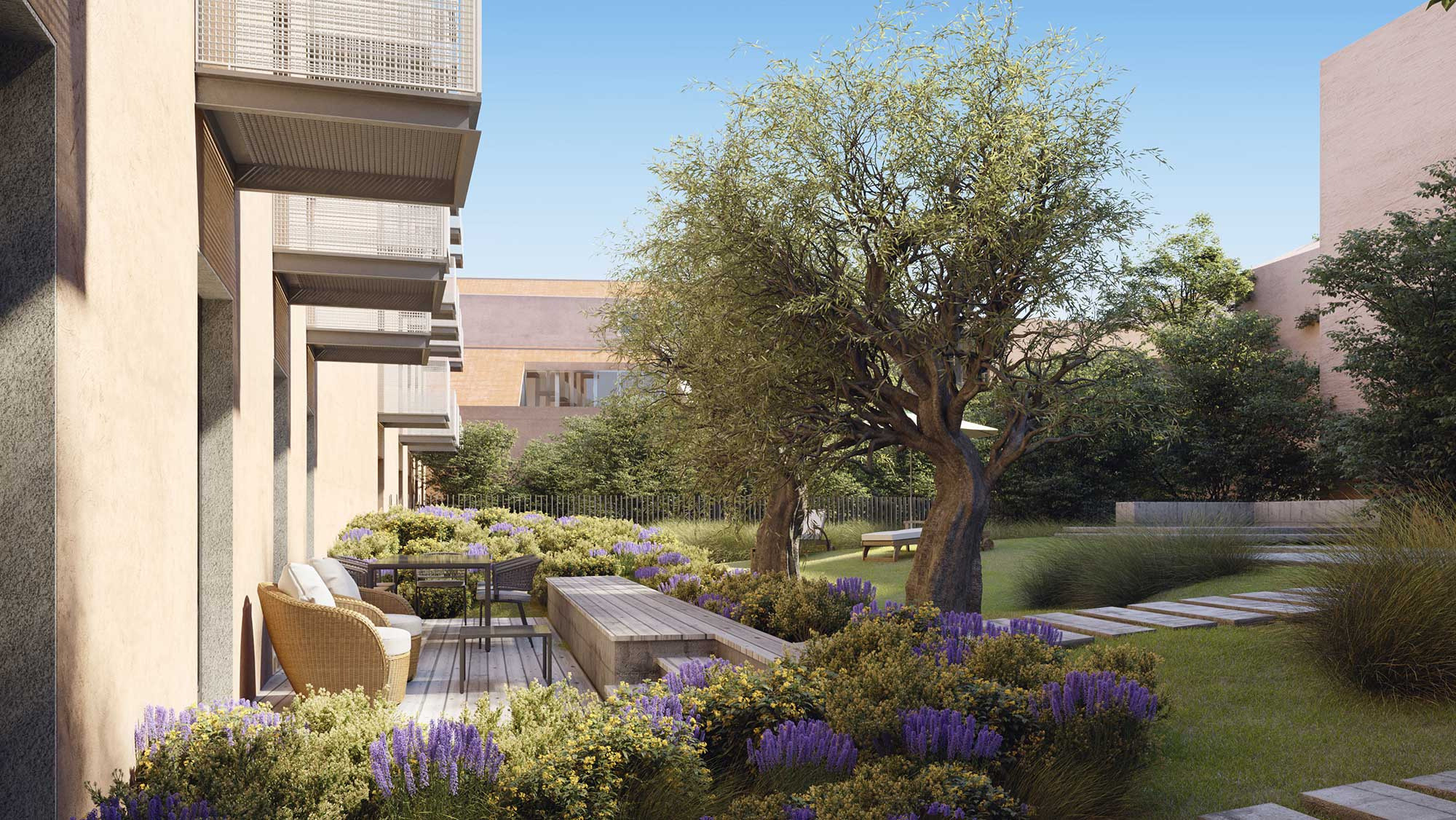

Inside the backyard, the private gardens are covered by vegetable land that will feed a wide lawn and several tree species foreseen in the landscaping project;

In the private gardens there are paths marked by white concrete slabs and living areas with a deck of Larix sibirica deck that looks exactly like the wood of the floor applied inside the dwellings;

Metal guards of the balconies on the existing facades with 8mm round flat rods and flat steel rods with a slender rectangular section; lacquered finish to matt dark gray color;

Balconies, on the facade facing the backyard (building D), in metal structure fixed to the facade, with floor and guard bodies in distended metal with an angular mesh. The set is white lacquered with matte finish.

Flooring of the terraces of the floors recessed in solid wood of Larix sibirica with identical appearance to the wood of the floor applied inside the dwellings. Rulers with section of 27x140mm;

Walls of these spaces with white paint finishing;

Window Frames - Curtain facade system in aluminum frame with thermal cut and dark gray finish - color Forge - matt; double glazing with gray tint.

Interior wooden doors including trim and fittings with white paint finish and matt finish;

Electric blackout blind system built into the ceiling over the continuous glazed sills (curtain facade system) and white screened attics.

Interior carpentry doors with sash leaf (s) to the face, pivoting or sliding white lacquered, matte finish, or veneered with wood veneer identical to the wood applied to the floor;

Doors up to the height of the lower ceilings (eg hallways and toilets);

Interior glass vents when partitions of common spaces - for example between kitchens and rooms - with colorless glass and steel frames finished with black paint.

Flooring of the social spaces and rooms in natural-looking wooden rulers (Hackwood type, Authentic Collection, Honest, Duoplank micro bevel, Dim. 2100x180x20mm), with brushed stainless steel flooring transition flap;

Flooring of kitchens and kitchenettes in ultra-compact material with a stone-like appearance in dark gray (anthracite) without shaft, matt appearance;

Floor of sanitary facilities in gray lioz of shaft with finish softened.

Skirting boards with wood-covered MDF floors. Water-repellent with 10cm in height and 1.5cm in thickness, white lacquered, outgoing application;

Wet areas and areas with ceramic tiles without skirting, that is, direct finishing of the wall to the pavement.

Walls in traditional or acoustic brick masonry (depending on the acoustic requirements of space) with smooth matt finish in white paint;

Walls of the wet areas - kitchenettes and social sanitary facilities - with paint system and paint finish of water-based acrylic enamel with anti-fungal protection and smooth matt finish in white;

Coating of some walls of the sanitary facilities (inside the showers for example) in the same material of the floor and in continuity of this, in porcelain mosaic or ultra compact composite material;

Walls of social IS with ceramic coating in glazed ceramic tile of traditional aspect with 10x10cm, in light green color;

Surrounding walls of the showers coated with glazed ceramic tile of a traditional type "Viuva Lamego", in white color and format 10X10cm.

Solid continuous false ceilings in normal or waterproof plasterboard in wet areas, with busbar and white paint finish;

Cornice in continuous u-shaped perimeter profile (shadow profile) with approximately 1,5cm of side with same finish of the ceiling;

Crown molding with LED illumination profile in the sanitary facilities, on the side wall of the shower or, in the sanitary facilities, next to the mirror on the washbasin;

Next to the facades the ceiling ends in crown molding with possibility of inclusion of decorative curtain and with continuous hidden LED profile. In the upper floor, in the large glazing in curtain facade system the rodatecto includes electric blind built-in blackout, with white screen.

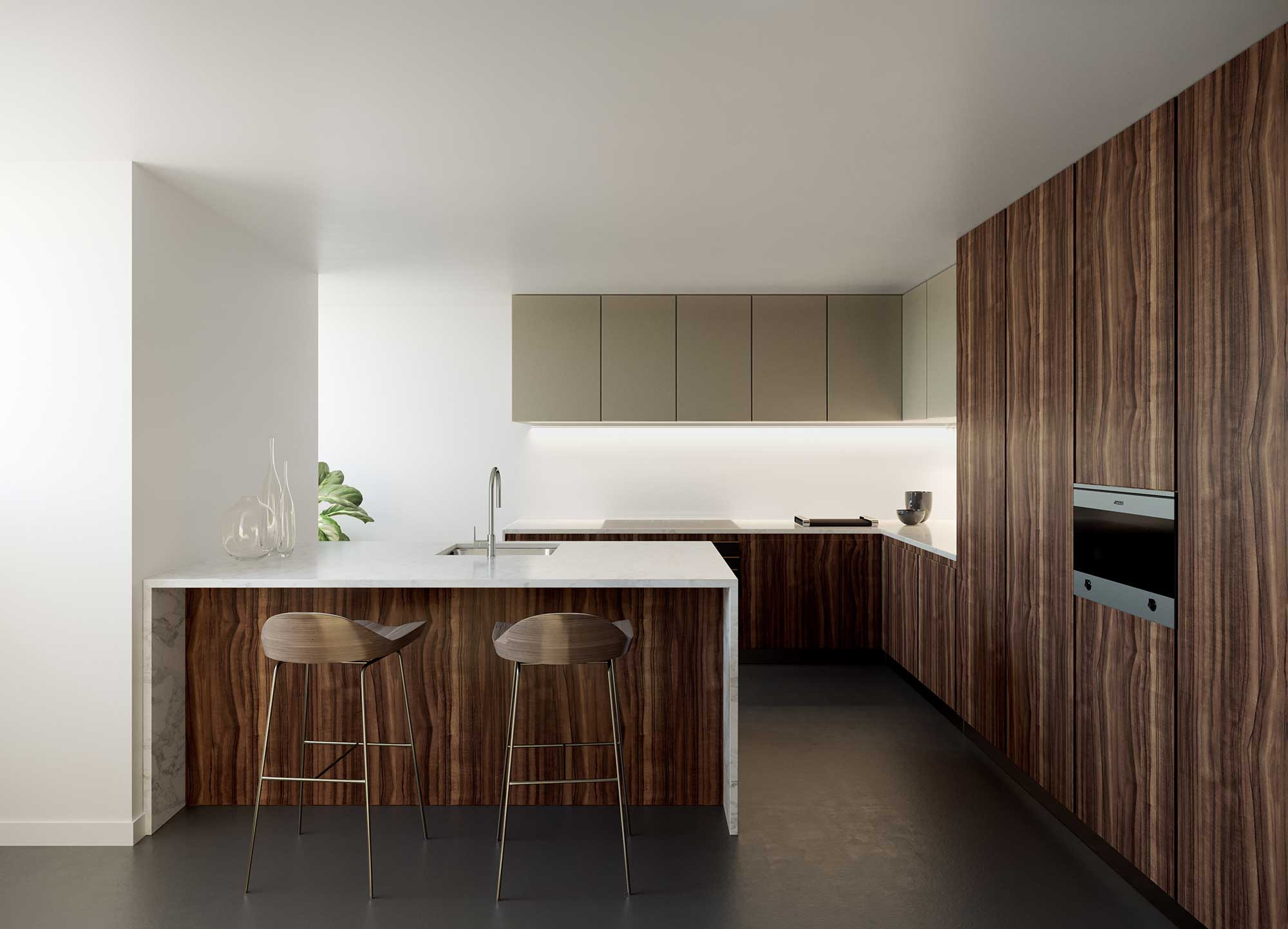

Open Kitchens

Bottom and Top Modules: lacquered finish in Cappucino matt;

Upper modules: glass doors (Lab Vetro color Tortora) and interiors in color Cappucino mate;

Equipment: SMEG

Top: ultra-compact surface with white "Silestone" quartz with light gray point (Eternal Statuario);

Table at 0.74cm height in Cappucino matt (lacquered), existing in typologies T1. In typologies T2 has a bench;

Kitchens closed or with glass partition

Bottom and upper modules: wood veneer finish with vertical shaft;

Upper modules: glass doors (Lab Vetro Tortora color) and interiors in color Cappucino mate;

Surface: ultra-compact surface with white "Silestone" type quartz with light gray point (Eternal Statuario);

Table at 0.74cm height in Cappucino matt (lacquered), existing in typologies T1. In typologies T2 has a bench.

Taps with white finish;

Sink bench in ultracompact material in white color with shaft pale gray point (Eternal Statuario ") and bottom wall units with two wooden drawers;

Polished sanitary ware (WC and bidet) suspended in white glazed ceramic;

shower trays made to-measure in ultra-compact material in white with matt non-slip lines;

Loose baths (larger sanitary facilities and in some rooms) in matt white ceramics with narrow limits Dimensions: height 475 x length 1650 x width 900 mm floor with a white finish;

Wall rack Electric metallic in rectangular profile placed vertically and embedded in the wall 50mm with white finish;

Colorless mirrors on the washbasins with anti-fogging system.

White Switches with "JUNG" minimalist " LS Zero "model," LS990 ". In kitchens, bench tops are of the same model but are not the black color.

Floor - Ceramic flooring in pieces with dimensions of 45x90cm, beige color;

Walls - Mineral coating of smooth finish based on aerial lime in white with matt finish;

Ceiling in the lobby of building D in apparent concrete, duly cleared and clean, with uniform texture. Finish with matt colorless varnish;

Remaining lobbies and lobby with false ceiling with matt white smooth finish.

Metal doors to the face with finish in the continuity of the adjacent walls, factory lacquered in white, matt finish.

Two elevators per building. Elevators (according to specialty design and dimensions according requested by the supplier) type "Otis" model "Solar Gen2 Switch" of 630kg, doors with telescopic opening and Extracurso Reduced and cabins with access. Cabin, series "Natural Environment" with level of finishes "Advanced";

Ash Tree Laminate Panels, brushed stainless steel control panel with "eView" instrument panel, full mirror on bottom panel, handrail and baseboard with rounded corners in brushed chrome and illuminated ceiling. Flags and concreting model "Actua", position indicator with high resolution LCD technology and level mixer;

Floor ready to receive a finish equal to the floor of the Lobby.

Floor - Coating of steps, skates and steps in ceramic mosaic beige equal to the material applied in the atria and lobbies;

Walls - Mineral coating of smooth finish based on aerial lime with matt white finish;

Guard - Metal guard consisting of flat bar rectangular steel rods of slender section and handrails with the same section. Mechanical fixing of the props to the floor;

Finished set with dark gray paint, matte finish;

Ceiling - Fine sanded plaster with white paint.



BLOCK C

Pavement of patios - Pavement in carpet screed finished with colorless water repellent;

Pavement of the terraces - Solid wood of Larix sibirica with identical appearance to the wood of the floor applied inside the dwellings. Rulers with section of 27x140mm (exists in Lofts C2.2 and C3);

Exterior walls of the patios - Finish with white paint;

Window Frames - Glazed windows of courtyards in steel frame with thermal cut and black lacquered finish, matte finish; Double glazing Gray;

Ground gaps - Entrance doors on the main façade with two pine plywood covered leaves and finished with matt colorless maritime veneer; metallic interior security structure and visible metal fittings with black matte finish;

Sills in Lioz stone, new elements identical to existing ones.

Interior wooden doors, including trimmings and fittings with white lacquered finish and matt finish. Covers made up of 4 sheets with articulated opening;

The upper portals have the leaves subdivided to half height to allow the opening of the upper plane, maintaining privacy.

Interior carpentry doors with leaf (s) on the face, pivoting or white lacquered running, matte finish;

Vains up to the height of the lower ceilings (eg corridor ceiling and sanitary facilities);

Roof cover (buildings C2 and C3) in "Velux" type skylight with tilting opening system with electric operation;

Interior finish in wood painted in white, matt finish;

Colorless safety glass, including electric darkening curtain in white.

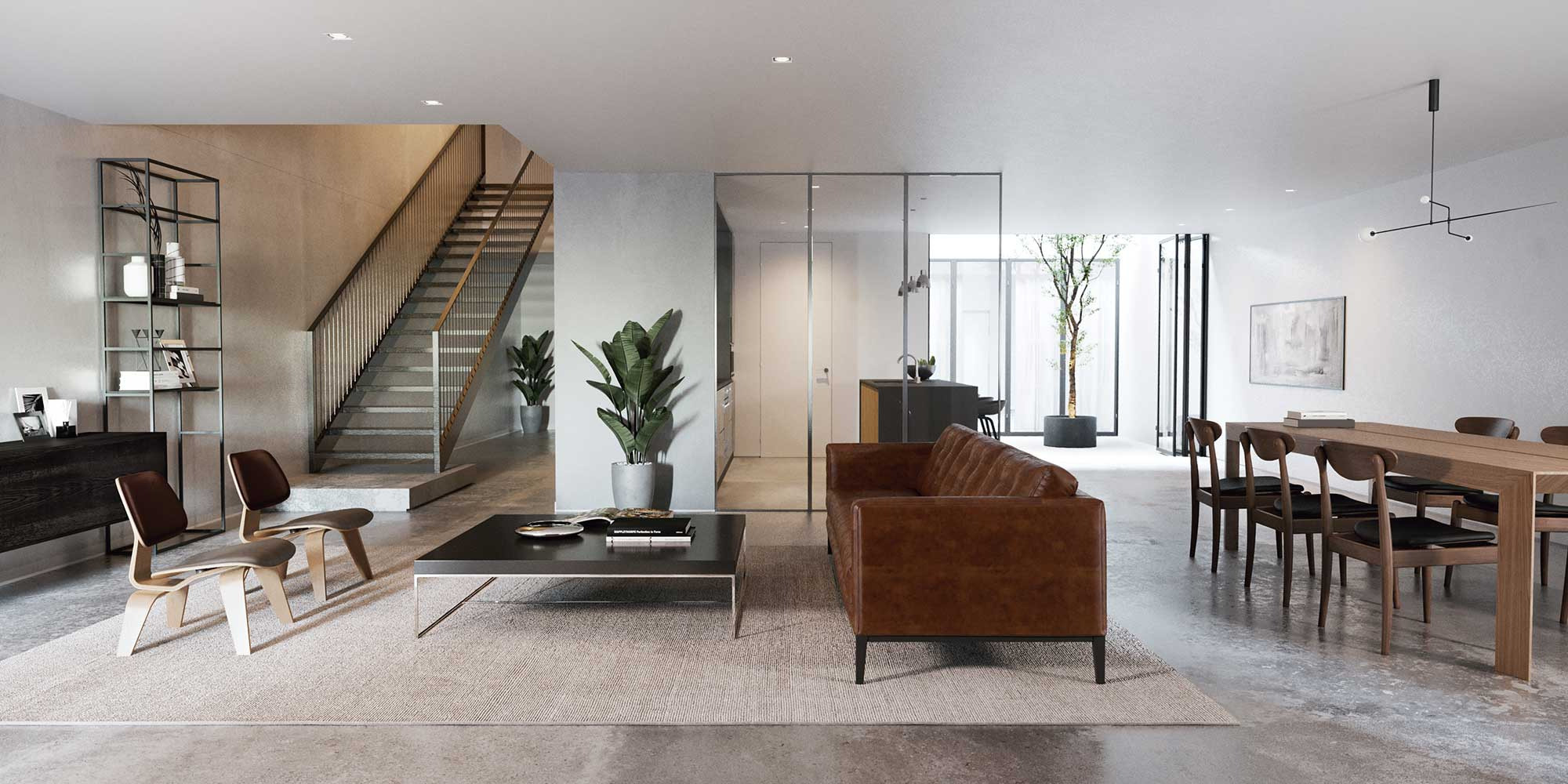

Staircase with metallic structure with wood-covered steps equal to that applied to the interior floors - only cover on the step cover, without mirror - and metallic elements with black lacquered matt finish;

Metallic guard with 8mm round flat rods and flat rods with rectangular section 5x40mm. Welded rods to the handrails and to the metallic structure of the steps. Metallic set and painted in black, matt finish.

Wooden floor tiles with a natural appearance ("Hackwood" type, Authentic Collection, Honest, Duoplank micro bevel, Dim. 2100x180x20mm), with brushed stainless steel flooring transition fin;

Hall floor of access to the fractions in screed stroked with white pigment;

Flooring of kitchenettes, circulations and social sanitary facilities (without shower) in screed stroked with white pigment;

Flooring of toilet facilities with shower with ultra-compact dark gray material with a slightly brownish hue, similar to natural stone, with light gray point veins, matt texture and rectified edges;

The interior floors are heated under with radiant floor technology.

Skirting boards with wood-covered MDF floors. Water-repellent, 10cm high and 1.5cm thick, white lacquered. Outgoing application;

Wet areas and areas with a non-skirting screed, ie a direct finish from the wall to the pavement.

Traditional or acoustic brick masonry walls (depending on the acoustic requirements of the space) with smooth matt finish in white paint;

Walls of the wet areas - kitchenettes and social sanitary facilities - with paint system and paint finish of water-based acrylic enamel with anti-fungal protection and smooth matt finish in white;

Walls of WC with shower with finishing in mineral coating of smooth finish based on aerated lime with smooth matt finish in white.

Solid continuous false ceiling in normal or waterproof plasterboard in wet areas, with busbar and white paint finish;

Cornice in continuous u-shaped perimeter profile (shadow profile) with approximately 1,5cm of side with same finish of the ceiling;

Crown molding with LED illumination profile in sanitary facilities, on the side wall of the shower or in the sanitary facilities, next to the mirror on the washbasin;

In the façade the ceiling ends in crown molding with possibility of inclusion of decorative curtain and continuous hidden LED profile.

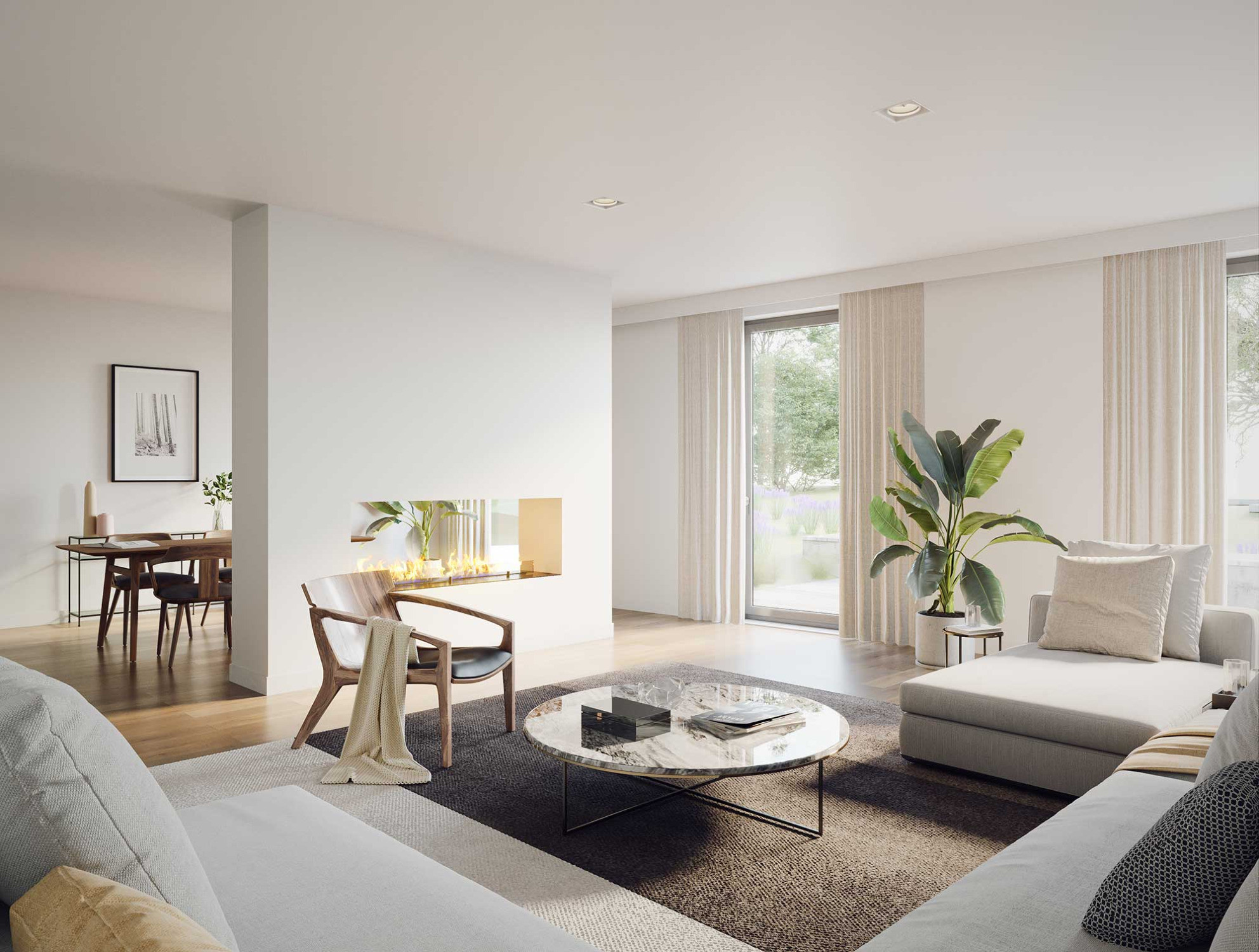

Bio-ethanol interior fireplace built in fire-retardant gypsum-coated equipment with interior metallic structure, with white finish and colorless protection glass;

Vertical slat assembly in the Hall of access to the dwellings in profiles of rectangular section in aluminum coated to composite of hybrid wood.

Upper and Lower Modules: gray brushed aluminum type finish;

Countertop Island with laminated wood finish;

Equipment: SMEG Classica;

Surface: ultra-compact type material stone in dark gray color (anthracite).

Electrical equipment with brushed aluminum controls of industrial appearance and "Antique bronze" type "CJC" finish, model "Mona Carre".

Faucets with matt black finish;

Washbasin counter in ultra-compact material dark gray with matt texture with lower cabinet suspended in wood with two drawers;

Sanitary ware (toilet and bidet) suspended in white glazed ceramic;

Shower trays in the continuity of the floor of the sanitary installation, with the same coating: dark gray ultra-compact material with a slightly brownish hue, similar to natural stone, with light gray point veins, matt texture and rectified edges;

Loose baths (larger sanitary facilities and in some rooms) in matt white ceramics with narrow limits. Dimensions: height 475 x length 1650 x width 900 mm. Floor-standing bathtub tap with matt black finish;

Metal electric towel rail in rectangular profile placed vertically and embedded in wall 50mm with black finish;

Colorless mirrors on the sinks with anti-fogging system as well as glued to the wall;

The mirrors suspended above the wash basins have a metal frame in black lacquered steel.

LOCATION

near:

Belém

Mosteiro dos Jerónimos

CCB

Museu MAAT

Connections:

18Km Aeroporto

24Km Cascais

22Km Sintra

47Km Serra da Arrábida


Sales & Inquiries

Call (+351) 213 461 246 or email us to This email address is being protected from spambots. You need JavaScript enabled to view it.
